3NB Series Mud Pump Drilling Rig Drilling Equipment

  • 3NB Series Mud Pump Drilling Rig Drilling Equipment
  • 3NB Series Mud Pump Drilling Rig Drilling Equipment
  • 3NB Series Mud Pump Drilling Rig Drilling Equipment
  • 3NB Series Mud Pump Drilling Rig Drilling Equipment

3NB Series Mud Pump Drilling Rig Drilling Equipment

    Unit Price: 98200 USD
    Min. Order: 1 Set/Sets
    Packaging: Packaging meet export requirements
    Productivity: 5
    Brand: YAOU
    Transportation: Ocean,Land
    Place of Origin: CHINA
    Supply Ability: 5
    HS Code: 8413400000
    Port: SHANGHAI

Basic Info

Model No.: 3NB

Product Description

Products Description

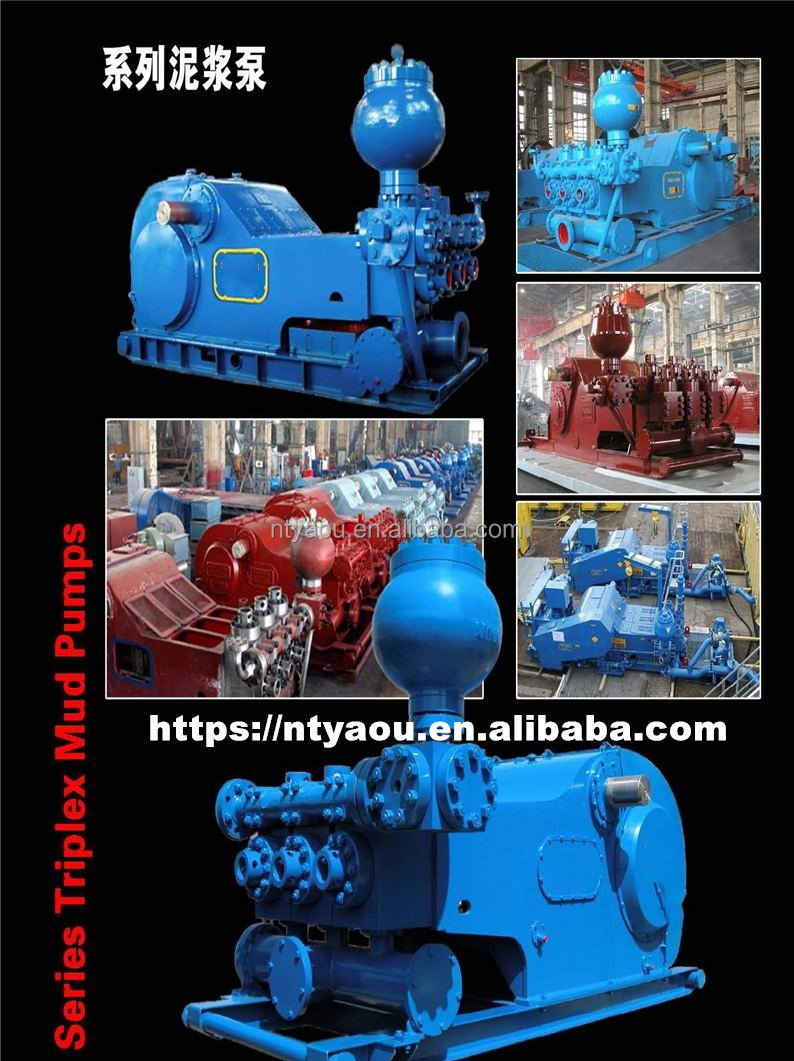

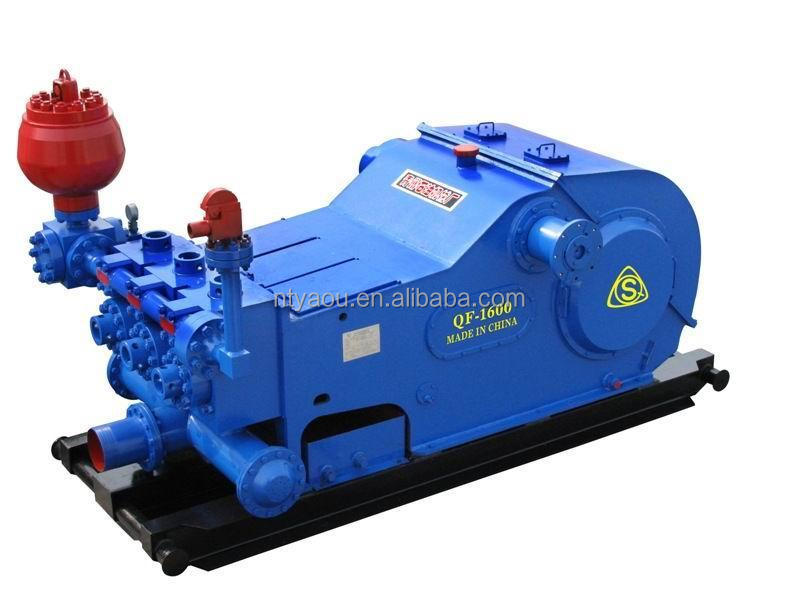

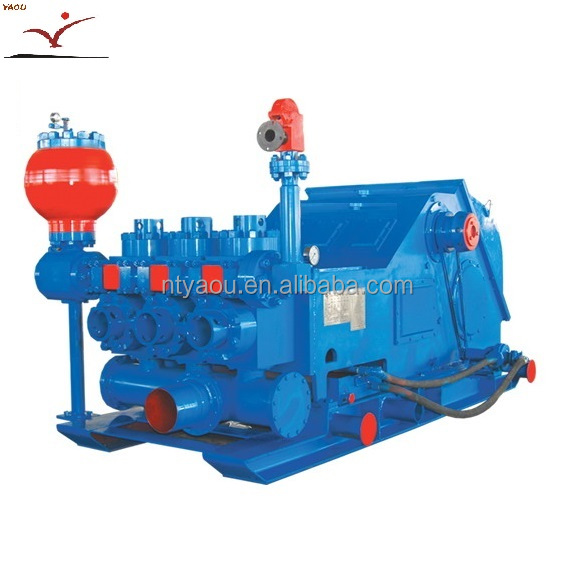

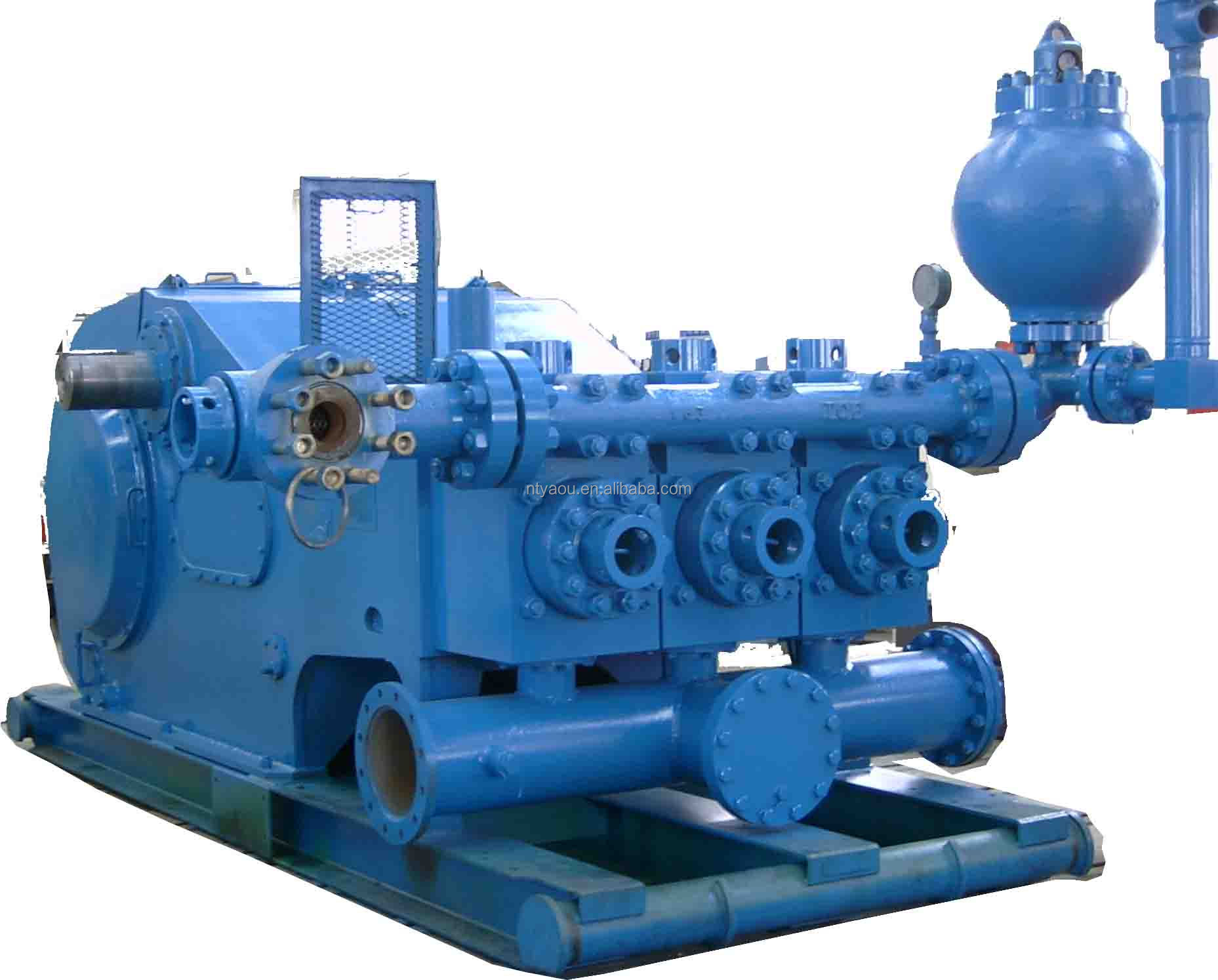

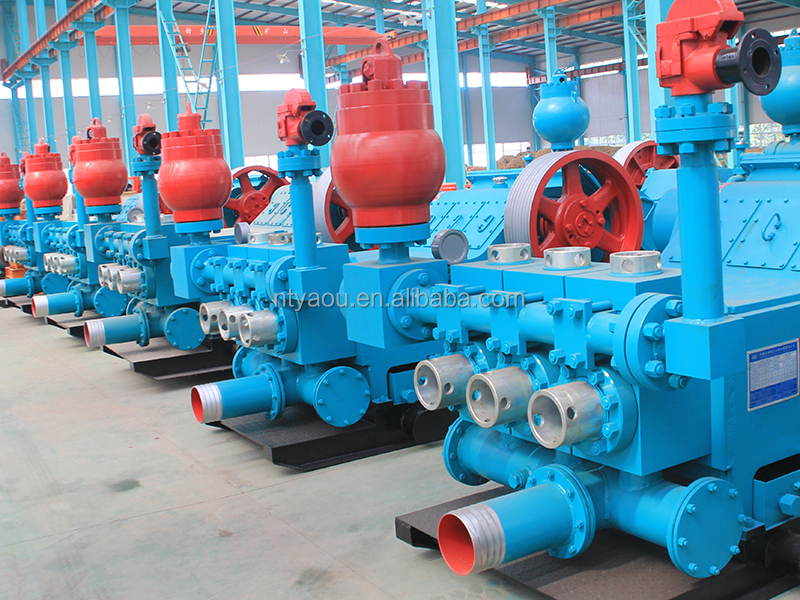

Mud pump
Power end
1. The frame is a welded structure with steel plate, high strength, rigidity and light weight.
2. Adopting herringbone gear drive, running smoothly.
Fluid end
1. The hydraulic cylinder is straight pass-through structure, it can make the fluid flow smoothly, volumetric efficiency higher and structure compact.
2. The three hydraulic cylinders are interchangeable.
3. The cylinder head and valve pot cover can be rapidly tightened, convenient for assembly and teardown.
4. The suction valve and discharge valve can be interchanged
5. The piston and liner bore are open wide structure, convenient for observing.
Model
3NB500F
3NB800F
3NB1000F
3NB1300F
3NB1600F
Type
triplex single action piston pump
triplex single action piston pump
triplex single action piston pump
triplex single action piston pump
triplex single action piston pump
Rated input power
373kW
597kW
746kW
969kW
1193kW
500hp
800hp
1000hp
1300hp
1600hp
Rated speed
120 stroke/minute
150 stroke/minute
140 stroke/minute
120 stroke/minute
120 stroke/minute
120SPM
150SPM
140SPM
120SPM
120SPM
Max. liner bore × stroke
170×229mm
170×229mm
170×254mm
180×305mm
180×305mm
6.6930×9
6.6930×9
6.6930×10
7.0867×12
7.0867×12
Gear type
Herringbone (double-spiral)
Herringbone (double-spiral)
Herringbone (double-spiral)
Herringbone (double-spiral)
Herringbone (double-spiral)
Gear ratio
3.962:1
4.185:1
4.207:1
4.206:1
4.206:1
Lubrication
force and splash
force and splash
force and splash
force and splash
force and splash
Suction flange
8 (203mm
10254mm
12305mm
12305mm
12305mm
Discharge flange
103mm- 35MPa
130mm-35MPa
130mm-35MPa
130mm-35MPa
130mm-35MPa
GB3165.2-82
GB3165.2-82
GB3165.2-82
GB3165.2-82
GB3165.2-82
4- 5000psi
5 1/8- 5000 psi
5 1/8- 5000 psi
5 1/8- 5000 psi
5 1/8- 5000 psi
Pinion shaft diameter and extension
139.7×257mm
177.8×324mm
196.9×337mm
215.9×337mm
215.9×337mm
5 1/2×10 1/8
7×12 3/4
7 3/4×13 1/4
8 1/2×13 1/4
8 1/2×13 1/4
Key
31.75×31.75mm
44.45×44.45mm
50.8×50.8mm
50.8×50.8mm
50.8×50.8mm
1 1/4×1 1/4
1 3/4×1 3/4
2×2
2×2
2×2
Valve pot
API6 #
API6 #
API6 #
API7 #
API7 #
Overall dimension
3400×1950×1440mm
3963×3024×1694mm
4269×3167×1818mm
4426×3260×2004mm
4426×3260×2004mm
133 7/8×76 3/4×56 11/16
156×119×66 11/16
168×124 5/8×71 9/16
174 1/4×128 3/8×78 7/8
174 1/4×128 3/8×78 7/8
Weight of main body
10350 kg
14500 kg
18790 kg
24532 kg
24715 kg
22818 lb
31967 lb
41425 lb
54084 lb
54487 lb
3zb 450 Plunger Pump 010
Details Images
Product packaging
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Company Profile

Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Our company mainly deals in hardware tools, combined tools, electric tools, special tools for petroleum, metal processing machinery and petroleum drilling equipment. Diagonal Cutting PlierOil Drill PipesDrilling ToolsThe company provides various centrifugal pumps, chemical pumps, screw pumps, booster pumps, variable frequency constant pressure pumps, hydrochloric acid pumps, testing pumps, etc. Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers. Rugao yaou import & Export Co. Ltd has won the trust of our customers with the principle of multi variety operation characteristics and small profit and quick turnover. Enjoy a high position among consumers.

Certifications
Recommend Products
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
.
